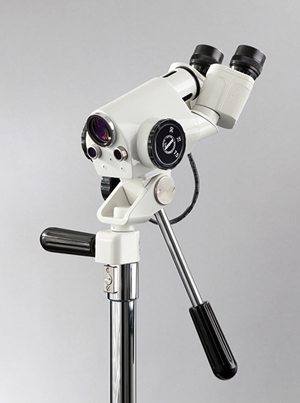

Model 1DW LED

Modell 1DW LED

As for 1D LED, but with comfortable 45° angled oculars.

Note:

No green filter!

Technical data

  • Illumination: White LEDs, 10 W power consumption, intensity of illumination 45.000-52.000 lx, colour temperature 5.700-6.000 K
  • Working distance: 300 mm
  • Beam path: Convergent
  • Eyepieces: 45° angular insight
  • Magnification: 7.5x/15x/30x
  • Field of view diameter: 46/23/11.5 mm
  • Light field diameter: 58 mm
  • Dioptric correction: +7 to -7 diopters
  • Green filter: without green filter
  • Horizontal fine adjustment: 40 mm
  • Vertical fine adjustment: 80 mm
  • Colours: standard colour grey white (RAL 9002), custom colours (RAL) available

Stands, roller base

  • Stands: Upright stand, swing-o-matic stand or balance-o-matic stand
  • Assembly: On roller base or on examination chair

Associated equipment

  • Video adapter: VID video adaptor with 15x magnification for upgrade with photo/video feature
  • Cameras: Video camera, 1.3 MP, USB 2.0 interface; for combination with a video adapter
  • Software: MediaWorkStation software pre-installed on touch panel PC; VC-K27 Driver/Viewer
  • Tray: To support a notebook or a tablet; for swing-o-matic and balance-o-matic stand
